This module features 8 output channels, each with indicator LEDs allowing you to write to individual outputs or set them all at once. The outputs are all VDD, allowing you to control 12 - 24V components with ease.

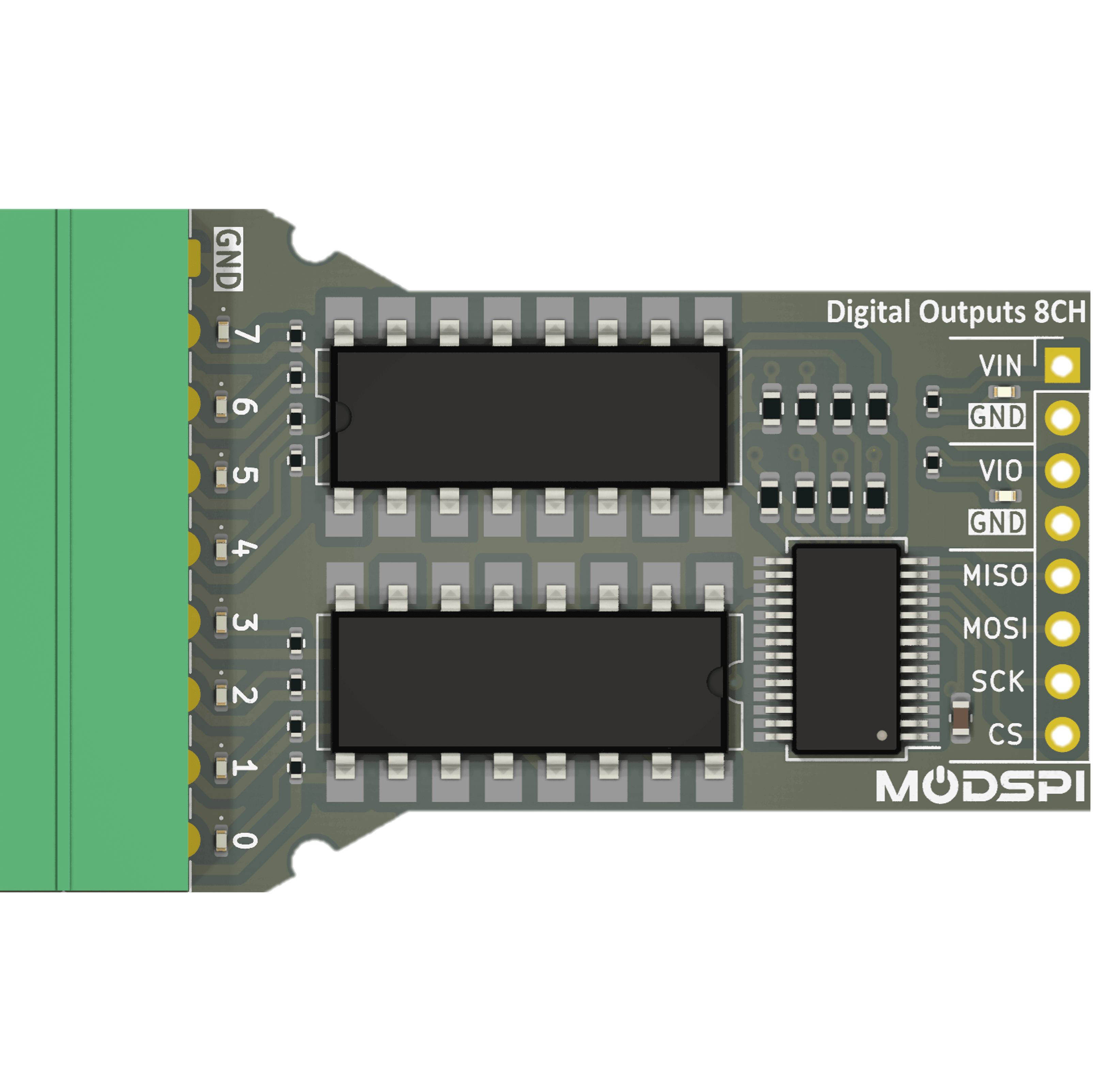

MODSPI Digital Outputs

£19.99Price
Quantity
    • 8 Channel 24V Digital Outputs
    • Fast response with Optocoupler Isolation on every channel
    • Indicator LED on every channel
    • Features an SPI IO Expander
    • Write individual channels or the full 8 channel bus
    • Ideal for low-current outputs
  • Type                                 SPI Digital Output
    Application  Writing 24V Digital Outputs
    Chips MCP23S17, LTV-847.
    Board Size 25mm x 50mm (1 inch x 2 inch)
    Version 1.0
    Key Features

    - Optocoupler isolation

    - SPI IO Expander

    - Indicator LED
    Logic Voltage 5V
    Supply Voltage 24V
    Interface

    SPI, 8way 2.54mm pitch Pin Header

    2x 3way 2.54mm pitch Screw Terminal
